Zemic H3 Nickel Plated Alloy Steel S-type Load Cell, OIML approved,...

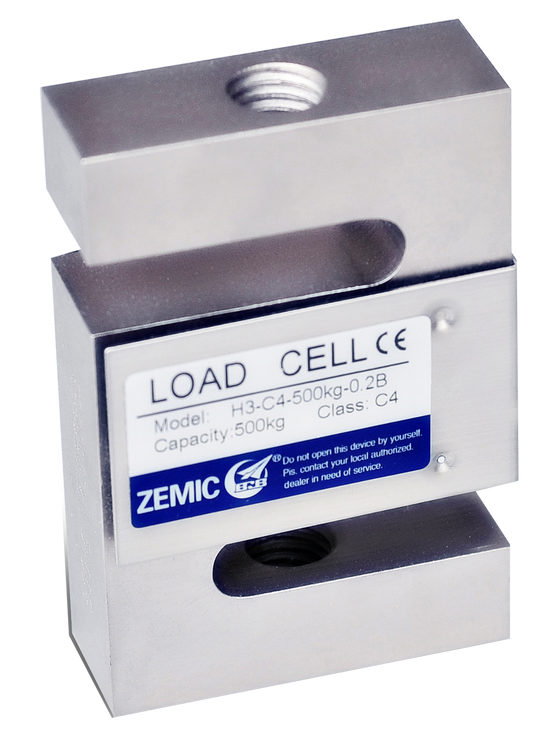

Nickel plated alloy steel IP67 “S” type load cell.
Tension and compression applications.
Suitable for hanging, hopper and other weighing devices.
Also available in imperial capacities and dimensions.
Specifications
| Applications | OEM. Crane scales. Hoppers. Tank scales. Tension and compression |
|---|---|
| cable-length | 20 ft |
| capacity | 10000 lb |
| dimensions | 4.25" x 3" x 1.25" |
| Legal-for-Trade | Yes |
| Load-Cell-Rated-Excitation | 5-12 VDC (maximum of 18 V) |
| manufacturer-part-number | H3 (5Klb-10Klb) |
| Material | Nickel Plated Alloy Steel |
| Operating-temperature | -31‚° F to 158‚° F / -35‚°C to 70‚°C |
| overload | 150% capacity (safe) / 300% capacity (ultimate) |
| Spec Sheet | Spec_Sheet-H3.pdf |
| temp.-range | 14‚°F to 104‚°F (-10‚°C to 40‚°C) |
