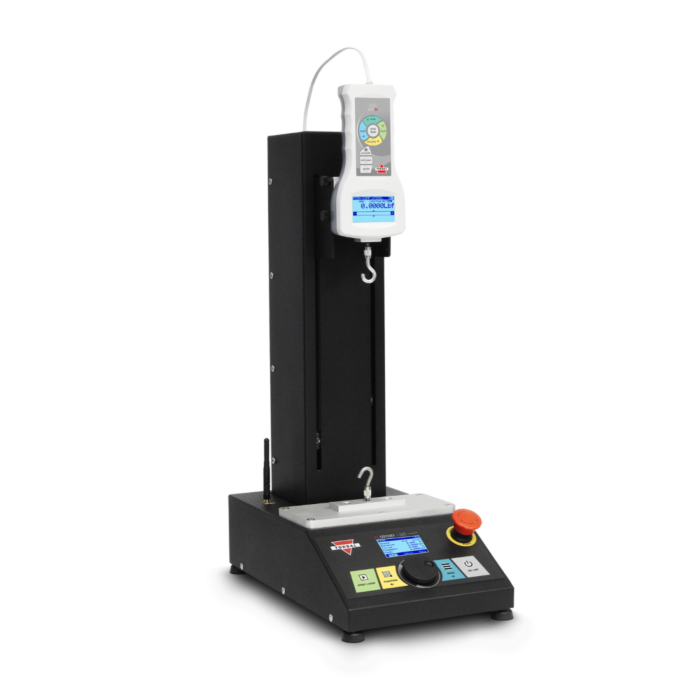

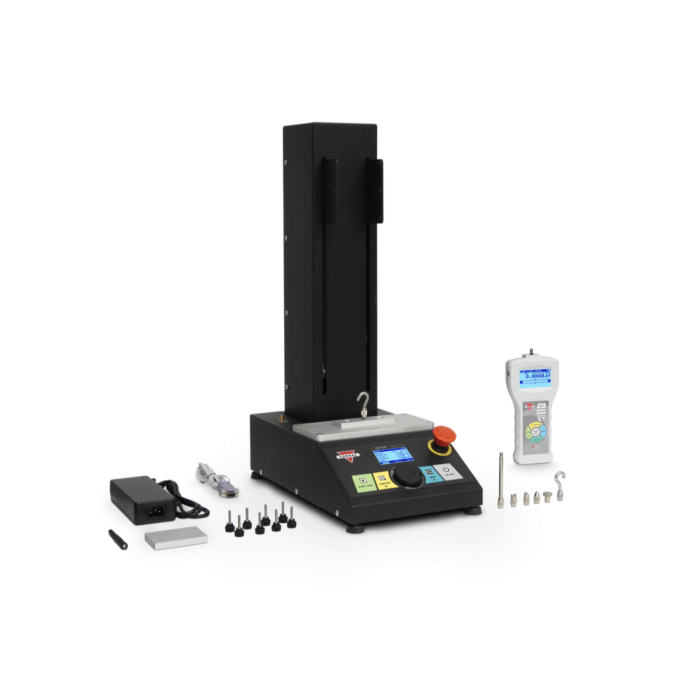

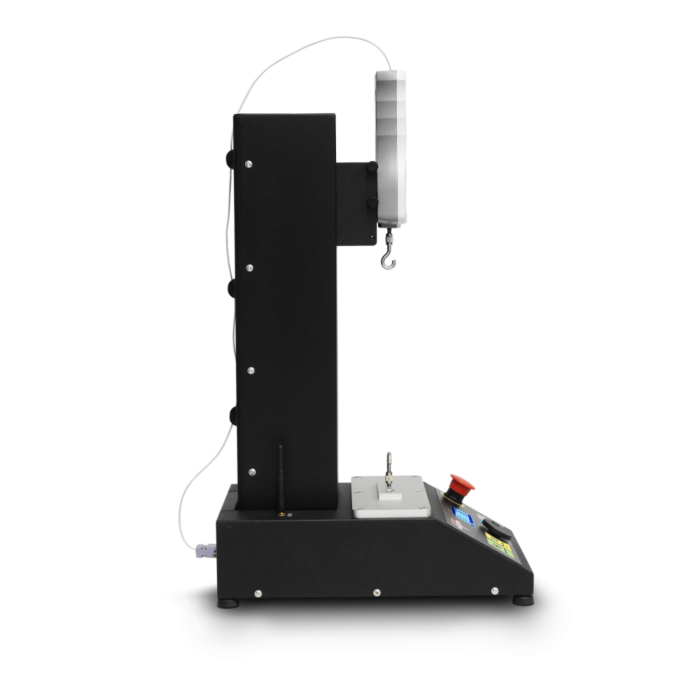

Torbal FTV100-FB10 FT ODYSSEY STAND 11” Travel x 112lbF, Vertical, with FB10 Force Gauge, 2lbF x 0.0005lbF
Torbal FTV100-FB10 FT ODYSSEY STAND 11” Travel x 112lbF, Vertical, with FB10 Force Gauge, 2lbF x 0.0005lbF is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We offer Free US Standart Shipping over $500** - for items below 100lbs (actual and dimensional weight).
- Our standard shipping method is UPS Ground or FedEx Ground.
- For items over 100lbs we offer UPS rates.
- International sales are shipped via USPS, UPS, or DHL, where available.
Returns and Refunds
Returns and Refunds
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
You can always contact us for any return question at onlinesales@discountscales.com.
Shipping and handling are non-refundable.
Customer is responsible for shipping item/s for return or exchange.
To accept the return, Item has to be in brand new condition with ALL the parts and accessories that came with the box including the original packaging materials.
A 25% re-stocking fee or more may be applied depending on a condition of the returned item.
Torbal FTV100-FB10 FT ODYSSEY STAND 11” Travel x 112lbF, Vertical, ...

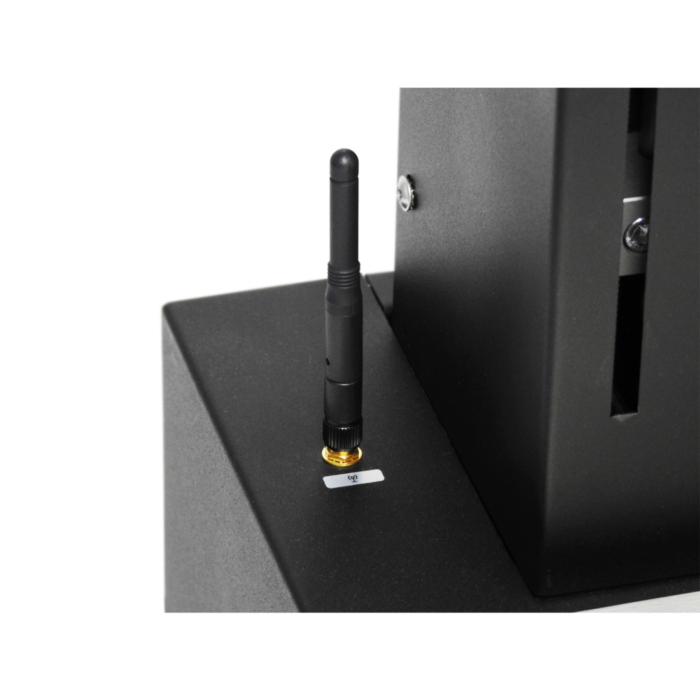

The TORBAL Odyssey is equipped with a built-in wireless data transmitter which allows for cable-free connection between the test stand and the force gauge. Data can also be sent wirelessly to a windows PC or laptop. No tangled or loose cables.
Easily connect to a computer via USB which is standard on all Odyssey Test Stands. For users with a programming background, our advanced communication protocol enables full control of the test stand from a PC or laptop.

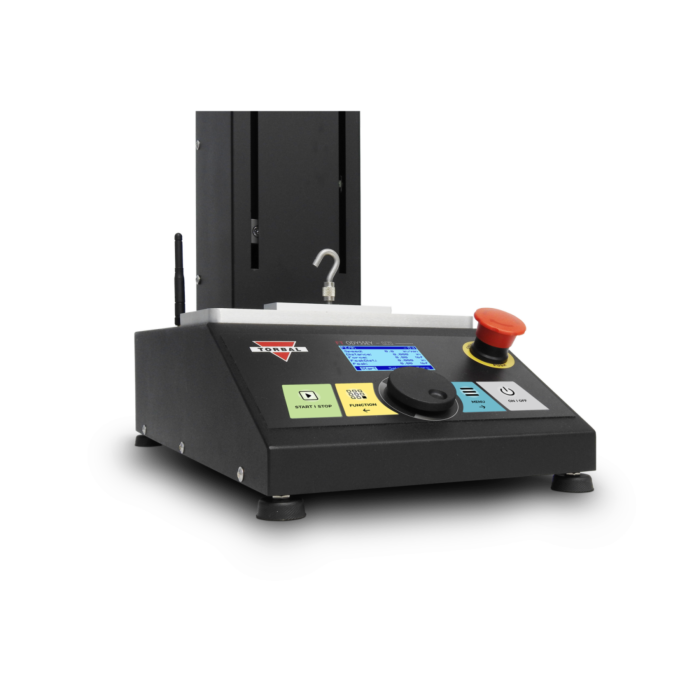

The quick wheel knob allows to manually move the test stand cross-head with a precision of 0.001in. Using the knob to move the cross-head to a starting and end positions is precise and trouble-free. The knob, combined with intuitively arranged keys, allows to quickly and effortlessly navigate through menus, scroll through options, and input data parameters.
Purpose-built rugged design makes the ODYSSEY Test Stand ideal for the most demanding applications. A reinforced column, combined with an ultra-high-performance motor, and a heavy duty cross-head, guarantees uninterrupted performance and continuous testing. A versatile mounting plate with ample clearance and depth allows for ultimate flexibility in mounting a wide variety of samples.
The test stand is supplied with mounting grip knobs that allow to easily mount the force gauge on the test stand and quickly adjust its position. Attaching and removing the force gauge is done effortlessly without the need for tools.
Features:
11” Travel
Test Stand Max Capacity: 112lbF | 500N
Force Gauge Max Capacity: 2lbF
Force Gauge Resolution: 0.0005lbF
Orientation: Vertical
Wireless PC Connectivity
Ports: USB | RS232
Dimensions: 9.37 x 15.95 x 26.77 in
Travel Resolution: 0.001 in | 0.01 mm
Speed Resolution: 0.1 in/min | 1 mm/min
Force Gauge Sampling Speed and Connection Type: FB THOR - Speed: 80Hz, Connection to test stand: Cable - 0
Specifications
| brand | Torbal |
|---|---|
| capacity-lb | 2 |
| dimensions | 238mm x 405mm x 680mm |
| interfaces | BT Wireless, USB (B Type), RS232 |
| list-price | 4439.87 |
| Manual | FTV_FTH__Instruction_Manual.pdf.pdf |
| manufacturer-part-number | FTV100-FB10 |
| maximum-speed | 0.4 in/min – 11.8 in/min | 10mm/min - 300mm/min |
| Operating-temperature | 50F – 104F | 10C – 40C |
| power | 100-240VAC 50/60Hz 120W / 24VDC 4A |
| readability-lb | 0.0005 |
| Rigidity | 0.05 in | 1.4mm |
| speed-accuracy | +/- 1% |
| Speed-Resolution | 0.1 in/min | 1 mm/min |
| Travel-Accuracy | +/- 0.008 in | +/- 0.2mm |
| Travel-Distance | 11.8in | 300mm |
| Travel-Resolution | 0.001 in | 0.01mm |
| Weighing-Units | in/min, mm/min |
