Ricelake ITCMSS 3000 lb Module, 3/4-10 NC Threading, Class III/III L, NTEP
Ricelake ITCMSS 3000 lb Module, 3/4-10 NC Threading, Class III/III L, NTEP is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We offer Free US Standart Shipping over $500** - for items below 100lbs (actual and dimensional weight).
- Our standard shipping method is UPS Ground or FedEx Ground.
- For items over 100lbs we offer UPS rates.
- International sales are shipped via USPS, UPS, or DHL, where available.
Returns and Refunds
Returns and Refunds
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
You can always contact us for any return question at onlinesales@discountscales.com.
Shipping and handling are non-refundable.
Customer is responsible for shipping item/s for return or exchange.
To accept the return, Item has to be in brand new condition with ALL the parts and accessories that came with the box including the original packaging materials.
A 25% re-stocking fee or more may be applied depending on a condition of the returned item.
Ricelake ITCMSS 3000 lb Module, 3/4-10 NC Threading, Class III/III ...

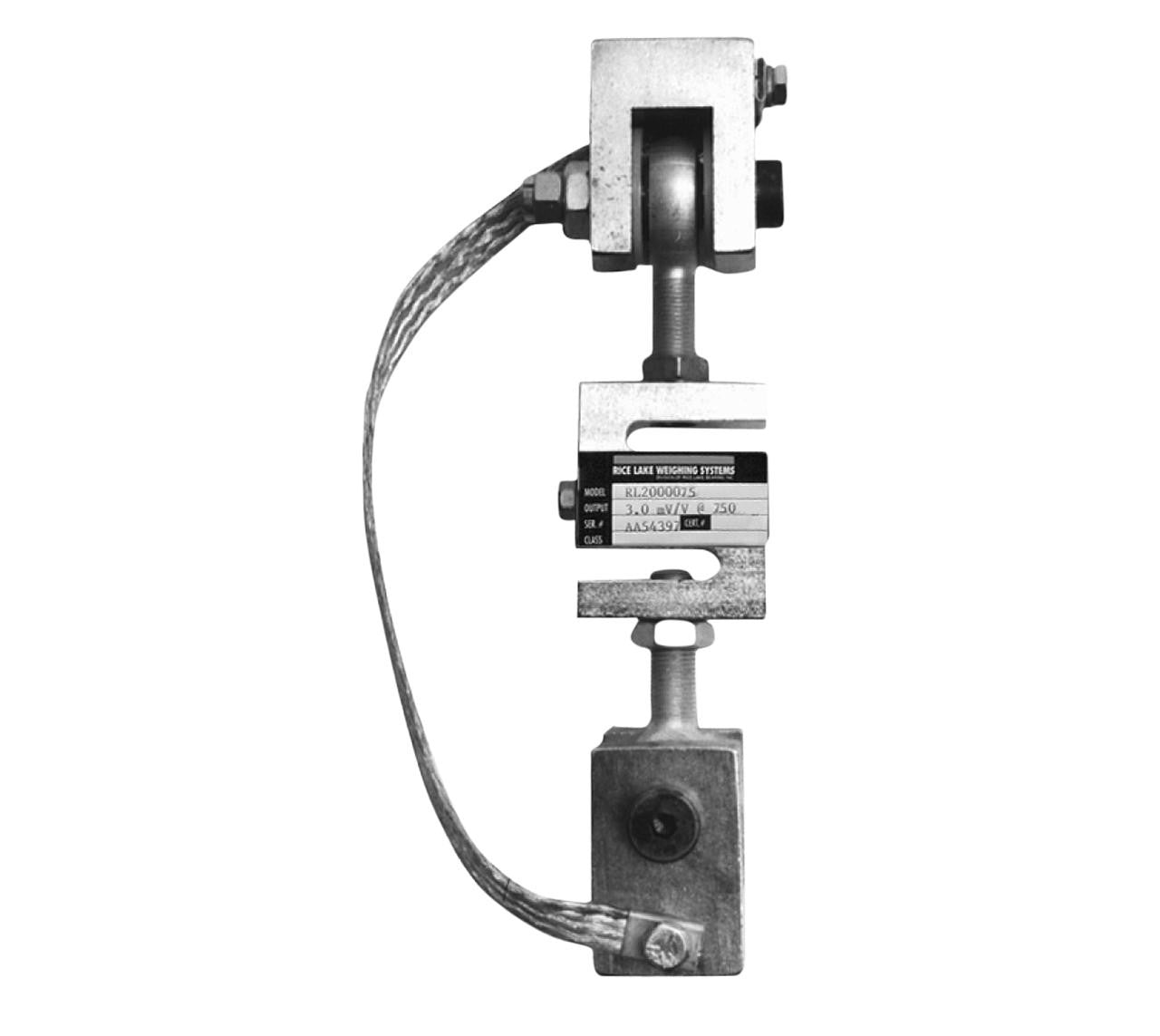

Rice Lake ITCMSS suspension mount kits are best suited for suspended hoppers and tanks, mechanical scale conversions, and custom tension applications. This Rice Lake ITCMSS module kit includes one RL20000ST s-beam load cells, a grounding strap, and a complete stainless steel clevis assemblies. Rice Lake RL20000ST load cells are IP67 rated, constructed of stainless steel, and are NTEP approved. The clevis and rod-end ball joint assemblies provide correct load alignment and reduces the overall length of the mount compared to traditional mount assemblies. Nylon washers and grounding straps help protect the load cells from stray electrical currents.
Features:
One fully stainless steel module and load cell
3/4-10 NC threaded mounting holes
Clevis mounts with nylon insulating washers
PTFE lined rod-end ball joints
Load cell is completely isolated from stray currents
Included grounding strap provides alternative path to ground
Lower overall height compared to other isolated tension assemblies
Load Cell Output 3 mV/V
Load Cell Cable Length: 20 ft
Seal Type: Environmentally sealed
NTEP approved load cell
Specifications
| approvals | FM |
|---|---|
| brand | Ricelake |
| capacity-lb | 3000 |
| Construction | Stainless steel |
| Grounding-Strap | Yes |
| Legal-for-Trade | Yes |
| list-price | 962.00 |
| manufacturer-part-number | 46777 |
| Spec Sheet | Spec_Sheet-ITCM_SS.pdf |
| Warranty | 2 year limited manufacturer's warranty |
