Ricelake 46744 ITCMSS 1000 lb Modules (3), 5/8-11 NC Threading, Environmentally sealed, Class III/III L, NTEP
Ricelake 46744 ITCMSS 1000 lb Modules (3), 5/8-11 NC Threading, Environmentally sealed, Class III/III L, NTEP is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We offer Free US Standart Shipping over $500** - for items below 100lbs (actual and dimensional weight).
- Our standard shipping method is UPS Ground or FedEx Ground.
- For items over 100lbs we offer UPS rates.
- International sales are shipped via USPS, UPS, or DHL, where available.
Returns and Refunds
Returns and Refunds
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
You can always contact us for any return question at onlinesales@discountscales.com.
Shipping and handling are non-refundable.
Customer is responsible for shipping item/s for return or exchange.
To accept the return, Item has to be in brand new condition with ALL the parts and accessories that came with the box including the original packaging materials.
A 25% re-stocking fee or more may be applied depending on a condition of the returned item.
Ricelake 46744 ITCMSS 1000 lb Modules (3), 5/8-11 NC Threading, Env...

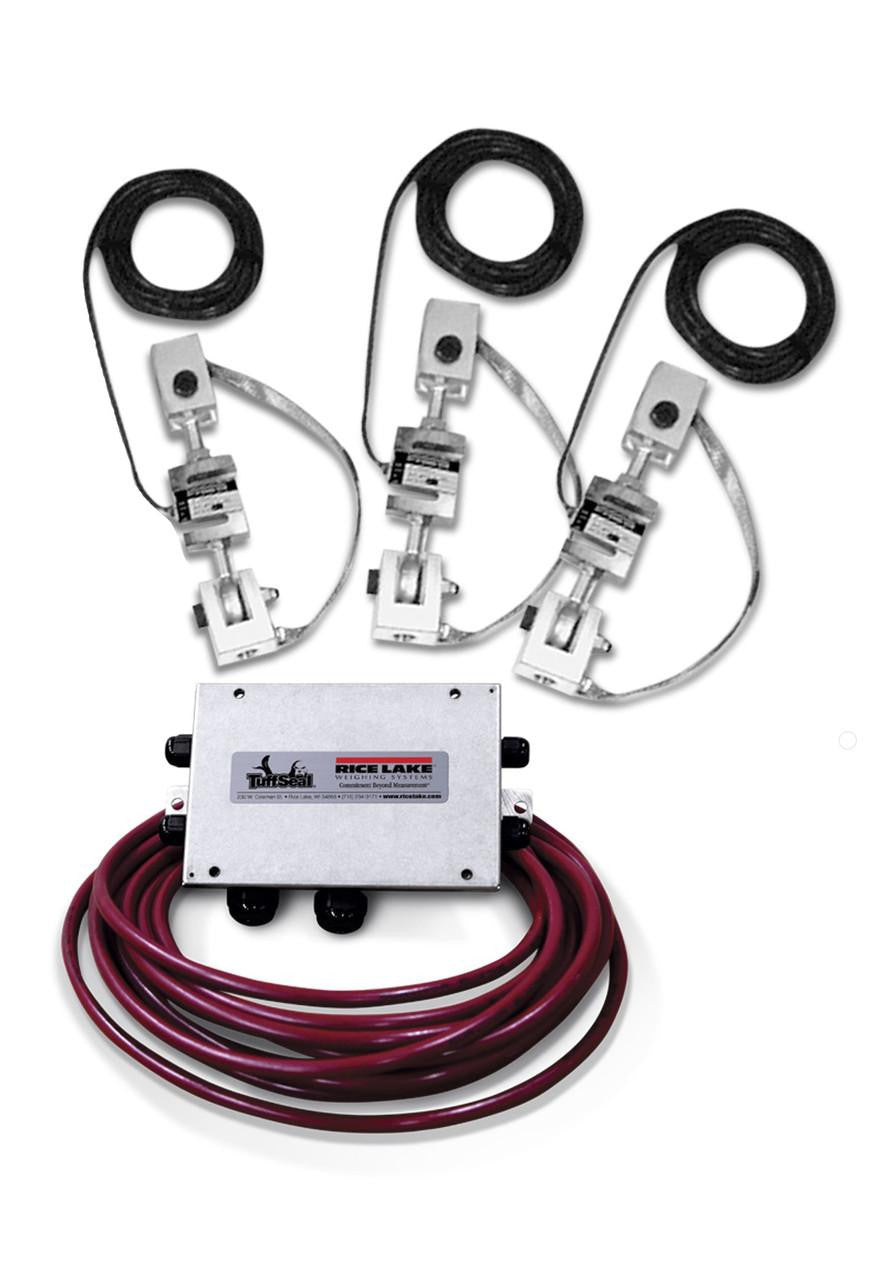

Rice Lake ITCMSS suspension mount kits are best suited for suspended hoppers and tanks, mechanical scale conversions, and custom tension applications. This Rice Lake module kit includes three RL20000ST s-beam load cells, three ITCMSS stainless steel clevis assemblies, one JB4SS junction box, 25 ft of EL147HE SURVIVOR load cell cable, and grounding straps. Rice Lake RL20000ST load cells are IP67 rated, constructed of stainless steel, and are NTEP approved. The clevis and rod-end ball joint assemblies provide correct load alignment and reduces the overall length of the mount compared to traditional mount assemblies. Nylon washers and grounding straps help protect the load cells from stray electrical currents.
Features:
5/8-11 NC threaded mounting holes
Three fully stainless steel modules and load cells
One JB4SS NEMA Type 4X stainless steel signal trim junction box
25 ft of hostile environment EL147HE SURVIVOR load cell cable
Each individual load cells cable length is 20 ft
Clevis mounts with nylon insulating washers
PTFE lined rod-end ball joints
Load cells are completely isolated from stray currents
Included grounding strap provides alternative path to ground
Lower overall height compared to other isolated tension assemblies
NTEP approved load cells
Specifications
| Applications | Suspended hoppers and tanks. Mechanical scale conversions.Use as a single module or in multiples |
|---|---|
| approvals | FM |
| brand | Ricelake |
| cable-length | 20 ft (Load Cell) |
| capacity-lb | 1000 |
| Cell-Input-Resistance | 430 +/- 60 ohm |
| Cell-Output-Resistance | 350 +/- 3.5 ohm |
| Construction | Stainless Steel |
| Grounding-Strap | Yes |
| Legal-for-Trade | Yes |
| list-price | 2809.00 |
| Load-Cell-Rated-Excitation | 5-10 VDC (maximum of 15 V) |
| Manual | Manual-ITCM_SS.pdf |
| manufacturer-part-number | 46744 |
| output | 3 mV/V (Load Cel) |
| Spec Sheet | Spec_Sheet-ITCM_SS.pdf |
| Warranty | 2 year limited manufacturer's warranty |
