Torbal FSB10 Clamp Torque Gauge, 100lbf.in x 0.1lbf.in (10Nm x 0.01Nm)

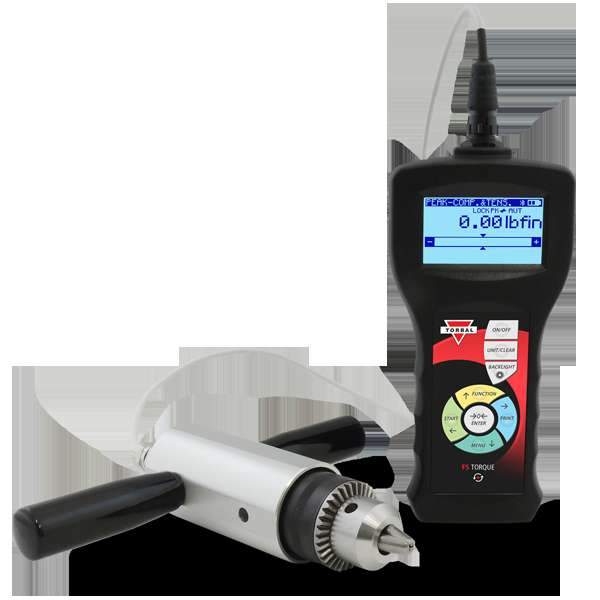

High capacity chuck clamp torque gauge with a maximum capacity of 100lbf.in and resolution of 0.1lbf.in. The FSB10 TORQUE Chuck Clamp samples at a rate of 1000Hz and guarantees optimum precision and accuracy at all times. Measurements are automatically saved to the removable microSD memory card or can be easily sent via USB to a laptop or a PC. Ergonomic external loadcell sensor with detachable handles assures handheld stability. The loadcell is overload protected up to 150% full scale and accepts virtually any bit, grip or attachment compatible with conventional chuck clamps. Standard, Peak, Multi-Peak, and Fill-Meter functions guarantee maximum functionality and flexibility when taking measurements. Every function is optimized with statistical analysis, onscreen graphs, and a histogram. Analog I/O ports allows for threshold signaling and control of external peripherals. Powerful nickel–metal hydride batteries keeps the gauge charged up to 16 hours.
Specifications
| accuracy | ±0.5% Full Scale |
|---|---|
| battery-operating-time | 16h (LCD Backlight OFF, BT Wireless OFF) | 13h (LCD Backlight ON, BT Wireless OFF) | 10h (LCD Backlight ON, BT Wireless ON) |
| brand | Torbal |
| cable-length | 6.5ft |
| capacity-pound-force | 100lbf.in | 1kgf.m | 10Nm |
| communication | BT Wireless, USB (B Type), RS232, microSD (SDHC Class 4) |
| gtin | 647603933146 |
| indicator-dimensions | 8.46” x 3.93” x 1.57” | 215mm x 100mm x 40mm (not including load-cell) |
| indicator-weight | 1lb (415g) not including load-cell |
| lead-time | 2 |
| list-price | 1712.85 |
| Manual | FSC10_Manual.pdf |
| manufacturer-part-number | FSB10 |
| model | FSB10 |
| operating-temperature | 32°F to 104°F | 0 to 40°C | Humidity: Up to 80 % Max. |
| overload | 150% Full Scale (Display Limit: 110%) |
| power-supply | 12V, 1.2A |
| resolution | 0.1lbf.in | 1gf.m | 0.01Nm |
| sampling-rate | 1000Hz |
| torque-sensor-w-chuck-dimen | ⌀1.97in x 7.28in (⌀50mm x185mm) |
| torque-sensor-w-chuck-weigh | 1.9lb (860g) |
| units-of-measure | Nm, N.cm, kgf.m, gf.m, lbf.in |
| warranty-covering-parts-and | 24 months |
