Torbal FSA5 Torque Cap Tester, 44lbf.in x 0.01lbf.in (5Nm x 0.001Nm)

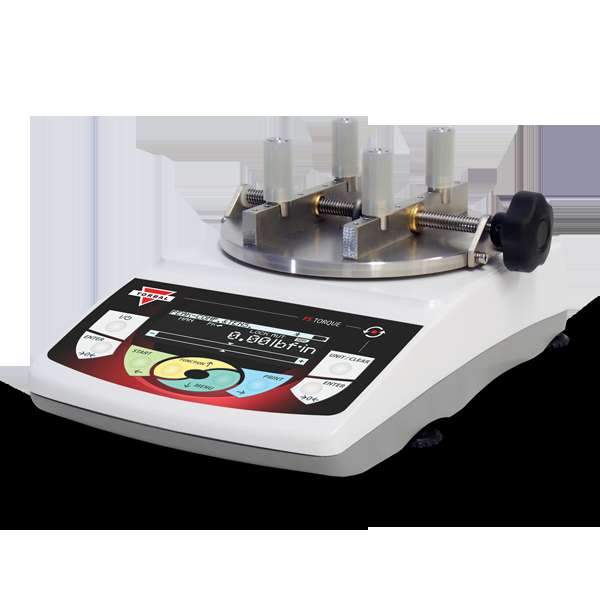

Powerful high performance cap torque gauge tester with a maximum capacity of 44lbf.in and resolution of 0.01lbf.in. FSA5 TORQUE is ideal for any clockwise and counter clockwise cap torque testing application. Easily test any cap, jar, bottle, or valve. Fully configurable and easy-to-use Peak modes increase efficiency during quality control testing or research. Ultra-fast real time 1000Hz sampling delivers accurate and precise torque measurements. Every model is equipped with a built-in wireless data transmitter, expandable microSD memory card, as well as a USB and an RS232 interface. Every function is optimized with statistical analysis, onscreen graphs, and a histogram. The analog input-output port makes the FSA ideal for use with Pass / Fail signalization devices or other equipment. Engineered with high output loadcells to deliver repeatable torque measurements at all times. The FSA is rugged and built with a heavy-duty stable die-cast metal housing designed to accept containers or samples up to 7” in diameter. Adjustable steel posts covered with non-slip rubber sleeves assure a firm grip of a wide range of container shapes and sizes.
Specifications
| accuracy | ±0.5% Full Scale |
|---|---|
| battery | Rechargeable Batteries: 4 x Ni-MH 2700mAh, 1.2V |
| battery-operating-time | 14h (LCD Backlight OFF, BT Wireless OFF) | 11h (LCD Backlight ON, BT Wireless OFF) | 8h (LCD Backlight ON, BT Wireless ON) |
| brand | Torbal |
| capacity-pound-force | 44lbf.in | 0.5kgf.m | 5Nm |
| communication | BT Wireless, USB (B Type), RS232, microSD (SDHC Class 4) |
| dimensions | 13.6in x 9.3in x 6.3in (345mm x 236mm x 160mm) |
| gtin | 647603933108 |
| lead-time | 2 |
| list-price | 1659.29 |
| Manual | FSC10_Manual.pdf |
| manufacturer-part-number | FSA5 |
| model | FSA5 |
| overload | 150% Full Scale (Display Limit: 110%) |
| power-supply | 12V, 1.2A |
| sample-diameter-range | 0.79in to 7.09in (20mm to 180mm) |
| sampling-rate | 1000Hz |
| units-of-measure | Nm, N.cm, kgf.m, gf.m, lbf.in |
| warranty-covering-parts-and | 24 months |
