Torbal FB5k Precision Force Gauges, 1000lbf x 0.2lbf (5kN x 1N)

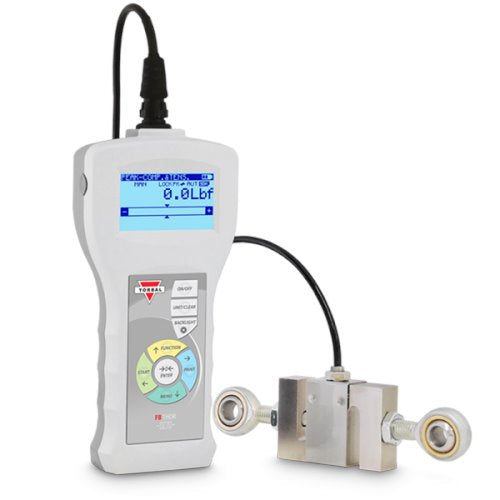

Digital force gauge ideal for the most demanding tension and compression applications requiring a capacity of 1,000lbf and a resolution of 0.2lbf. Captured force results are automatically stored to an expandable microSD memory card and can be easily transferred to a PC via USB or RS232. The FBk includes all essential force measuring modes such as Peak, Multi Peak, and Standard (Real Time). Easy-to-use Pass / Fail threshold settings makes this force gauge ideal for quality control applications. The force gauge is rugged and overload protected up to 200% at full scale, and equipped with a used-capacity-indicator which shows the amount of capacity used during force measurements. The unit is supplied with heavy duty swivel bearing joints designed to protect and secure the external loadcells against uneven and rapid movements. The force gauge is equipped with four easily removable batteries which keep the unit powered up for up to 32 hours of use.
Specifications
| accuracy | ±0.2% Full Scale |
|---|---|
| battery-operating-time | 32h (LCD Backlight OFF) | 27h (LCD Backlight ON) |
| brand | Torbal |
| capacity-volume | 1,000lbf | 500kgf | 5kN |
| dimensions | 8.46” x 3.93” x 1.57” | 215mm x 100mm x 40mm (not including load-cell) |
| gtin | 728028234886 |
| interfaces | USB (B Type), RS232, microSD (SDHC Class 4) |
| lead-time | 2 |
| list-price | 1177.25 |
| Manual | FC50k_Manual.pdf |
| manufacturer-part-number | FB5k |
| model | FB5k |
| operating-temperature | 14°F to 104°F | -10 to 40°C | Humidity: Up to 80 % Max |
| overload | 200% Full Scale (Display Limit: 110%) |
| power-supply | 12V, 1.2A |
| resolution | 0.2lbf | 100gf |1N |
| units-of-measure | N, kgF, lbF, ozF,lb, oz, kg |
| warranty-covering-parts-and | 24 months |
