Torbal FB1k Precision Force Gauges, 200lbf x 0.05lbf (1kN x 0.2N)

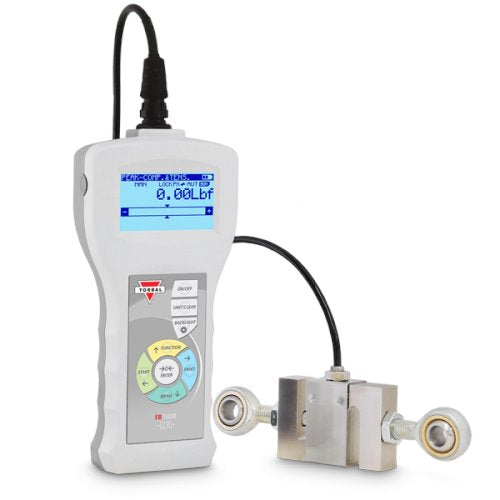

Digital force gauge for tension and compression applications with 200lbf capacity and resolution of 0.05lbf. Captured results are automatically stored on an expandable microSD memory card and can be transferred to a PC via USB or RS232. The unit is supplied with heavy duty swivel bearing joints designed to protect and secure the external loadcells against uneven and rapid movements. The force gauge is made for prolonged use with overload protection up to 200% at full scale, and equipped with a used-capacity-indicator which shows the amount of capacity used during force measurements. The FBk includes four powerful and easily removable batteries which keep the unit charged up to 32 hours for a longer run time.
Specifications
| accuracy | ±0.2% Full Scale |
|---|---|
| battery-operating-time | 32h (LCD Backlight OFF) | 27h (LCD Backlight ON) |
| brand | Torbal |
| capacity-volume | 200lbf | 100kgf | 1kN |
| dimensions | 8.46” x 3.93” x 1.57” | 215mm x 100mm x 40mm (not including load-cell) |
| gtin | 728028234862 |
| interfaces | USB (B Type), RS232, microSD (SDHC Class 4) |
| lead-time | 2 |
| list-price | 1070.13 |
| Manual | FC50k_Manual.pdf |
| manufacturer-part-number | FB1k |
| model | FB1k |
| operating-temperature | 14°F to 104°F | -10 to 40°C | Humidity: Up to 80 % Max |
| overload | 200% Full Scale (Display Limit: 110%) |
| power-supply | 12V, 1.2A |
| resolution | 0.05lbf | 20gf | 0.2N |
| units-of-measure | N, kgF, lbF, ozF,lb, oz, kg |
| warranty-covering-parts-and | 24 months |
