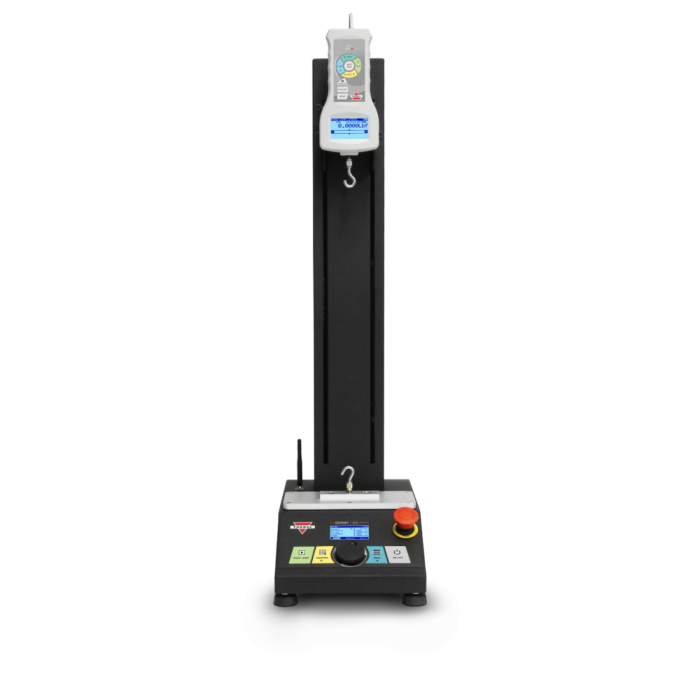

Torbal FTV100L-FB20 FT ODYSSEY STAND 19” Travel x 112lbF, Vertical, with FB20 Force Gauge, 4lbF x 0.001lbF
Torbal FTV100L-FB20 FT ODYSSEY STAND 19” Travel x 112lbF, Vertical, with FB20 Force Gauge, 4lbF x 0.001lbF is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We offer Free US Standart Shipping over $500** - for items below 100lbs (actual and dimensional weight).
- Our standard shipping method is UPS Ground or FedEx Ground.
- For items over 100lbs we offer UPS rates.
- International sales are shipped via USPS, UPS, or DHL, where available.
Returns and Refunds
Returns and Refunds
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
You can always contact us for any return question at onlinesales@discountscales.com.
Shipping and handling are non-refundable.
Customer is responsible for shipping item/s for return or exchange.
To accept the return, Item has to be in brand new condition with ALL the parts and accessories that came with the box including the original packaging materials.
A 25% re-stocking fee or more may be applied depending on a condition of the returned item.
Torbal FTV100L-FB20 FT ODYSSEY STAND 19” Travel x 112lbF, Vertical,...
The TORBAL ODYSSEY series offers complete configurability and manageability of your force testing applications. The ODYSSEY is ideal for use in R&D, laboratory, or production settings where force measurements must be performed under strictly controlled conditions and variables. Optimized and fully compatible with all TORBAL force gauges. The series includes the FTV Vertical and FTH Horizontal models. The FTV is available in 11.8in and 19.6in travel range, with a maximum load capacity of 100lbF. The FTH has 11.8in of travel and a maximum load capacity of 100lbF. Both models are equipped with a built-in wireless data transmitter which allows for a cable-free connection of the force gauge to the test stand, thereby eliminating the need for cables or wires. The ODYSSEY is easily programmed through its five application modes: Peak, Cycle, Step, Advanced, and Manual. Each mode includes all essential configuration parameters to assure tests are performed with utmost precision and accuracy. Precise control of speed, distance, direction, and peak detection makes the ODYSSEY ideal for virtually any tension or compression testing application.
Features:
19” Travel
Test Stand Max Capacity: 112lbF | 500N
Orientation: Vertical
Wireless PC Connectivity
Ports: USB | RS232
Distance Force Gauge Shaft to Column: 2.75in | 70mm
Force Gauge Sampling Speed and Connection Type: FB THOR - Speed: 80Hz, Connection to test stand: Cable - 0
Specifications
| brand | Torbal |
|---|---|
| capacity-lb | 4 |
| dimensions | 238mm x 407mm x 880mm |
| interfaces | BT Wireless, USB (B Type), RS232 |
| list-price | 5047.93 |
| Manual | FTV_FTH__Instruction_Manual.pdf.pdf |
| manufacturer-part-number | FTV100L-FB20 |
| maximum-speed | 0.4 in/min – 11.8 in/min | 10mm/min - 300mm/min |
| Operating-temperature | 50F – 104F | 10C – 40C |
| power | 100-240VAC 50/60Hz 120W / 24VDC 4A |
| readability-lb | 0.001 |
| Rigidity | 0.07 in | 1.8mm |
| speed-accuracy | +/- 1% |
| Speed-Resolution | 0.1 in/min | 1 mm/min |
| Travel-Accuracy | +/- 0.008 in | +/- 0.2mm |
| Travel-Distance | 19.6in | 500mm |
| Travel-Resolution | 0.001 in | 0.01mm |
| Weighing-Units | in/min, mm/min |
