Torbal FTH100-FC20 FT ODYSSEY STAND 11” Travel x 112lbF, Horizontal...

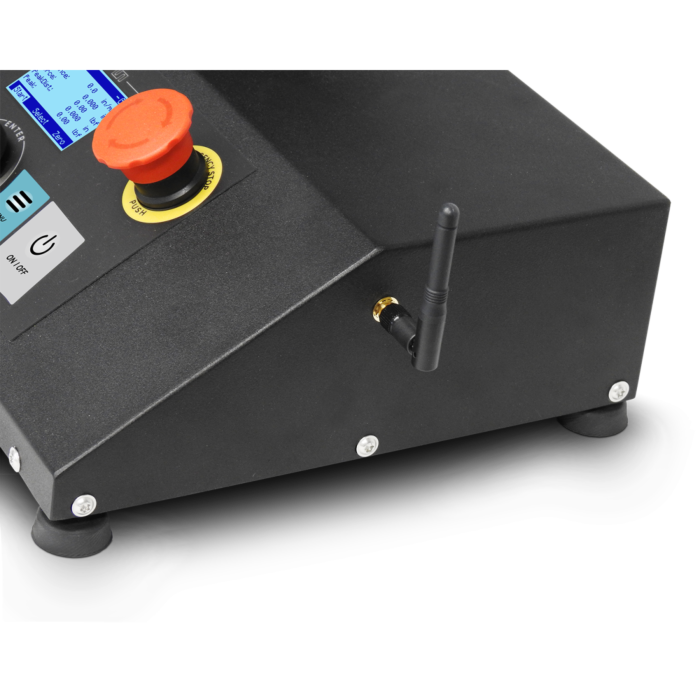

The test stand is supplied with mounting grip knobs that allow to easily mount the force gauge on the test stand and quickly adjust its position. Attaching and removing the force gauge is done effortlessly without the need for tools. Easily connect to a computer via USB which is standard on all Odyssey Test Stands. For users with a programming background, our advanced communication protocol enables full control of the test stand from a PC or laptop. No tangled or loose cables. The TORBAL Odyssey is equipped with a built-in wireless data transmitter which allows for cable-free connection between the test stand and the force gauge. Data can also be sent wirelessly to a windows PC or laptop. Purpose-built rugged design makes the ODYSSEY Test Stand ideal for the most demanding applications. A reinforced column, combined with an ultra-high-performance motor, and a heavy duty cross-head, guarantees uninterrupted performance and continuous testing. A versatile mounting plate with ample clearance and depth allows for ultimate flexibility in mounting a wide variety of samples. The quick wheel knob allows to manually move the test stand cross-head with a precision of 0.001in. Using the knob to move the cross-head to a starting and end positions is precise and trouble-free. The knob, combined with intuitively arranged keys, allows to quickly and effortlessly navigate through menus, scroll through options, and input data parameters.
Features:
11” Travel
Test Stand Max Capacity: 112lbF | 500N
Force Gauge Max Capacity: 4lbF
Force Gauge Resolution: 0.001lbF
Orientation: Horizontal
Wireless PC Connectivity
Ports: USB | RS232
Force Gauge Sampling Speed and Connection Type: FC ZEUS - Speed: 1000Hz, Connection to test stand: Wireless
Specifications
| brand | Torbal |
|---|---|
| capacity-lb | 4 |
| dimensions | 718mm x 250mm x 165mm |
| interfaces | BT Wireless, USB (B Type), RS232 |
| Manual | FTV_FTH__Instruction_Manual.pdf.pdf |
| manufacturer-part-number | FTH100-FC20 |
| maximum-speed | 0.4 in/min – 11.8 in/min | 10mm/min - 300mm/min |
| Operating-temperature | 50F – 104F | 10C – 40C |
| power | 100-240VAC 50/60Hz 120W / 24VDC 4A |
| readability-lb | 0.001 |
| Rigidity | 0.028 in | 0.7mm |
| speed-accuracy | +/- 1% |
| Speed-Resolution | 0.1 in/min | 1 mm/min |
| Travel-Accuracy | +/- 0.008 in | +/- 0.2mm |
| Travel-Distance | 11.8in | 300mm |
| Travel-Resolution | 0.001 in | 0.01mm |
| Weighing-Units | in/min, mm/min |
