Torbal FC10 Professional Force Gauges

by Torbal
Save 20%
Original price $941.58
Current price $753.26
SKU FC10

Availability: In Stock

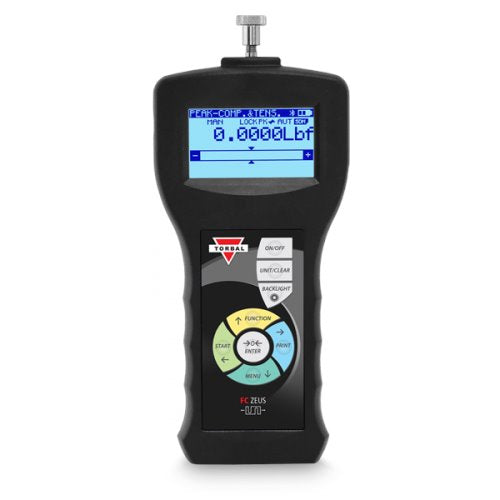

2lbf x 0.0005lbf (10N x 0.002N) Professional precision force gauge with a maximum capacity of 2lbf and resolution of 0.0005lbf. Premium design and superior performance make the FC10 ideal for even the most demanding tension and compression applications. The FC guarantees utmost accuracy and precision with ultra-fast 1000Hz real time sampling and data capture. Loaded with hardware features such as built-in wireless, expandable microSD memory card, USB, RS232, and an I/O output port. The analog input-output allows to connect external peripherals such as Pass / Fail buzzer, light signalization, or an external trigger switch. Peak and Multi Peak modes are enhanced with configurable features such as peak detection sensitivity, measurement time delay, force trigger, auto zeroing, and automatic data storing. Every function is optimized with statistical analysis, onscreen graphs, and a histogram. The force gauge is overload protected up to 200% at full scale, and equipped with a used-capacity-indicator which displays the amount of capacity used during force measurements. Backlit auto-rotate display automatically adjusts to the position of the force gauge. Excellent battery life with four powerful and easily removable Ni-MH 2700mAh batteries.

accuracy ± 0.1% Full Scale
battery 4 x Ni-MH 2700mAh
battery-operating-time 29h (LCD Backlight OFF, BT Wirless OFF) | 25h (LCD Backlight ON, BT Wirless OFF)
brand Torbal
capacity-volume 2lbf | 1kgf | 10N
dimensions 8.46” x 3.93” x 1.57” | 215mm x 100mm x 40mm
gtin 647603932958
interfaces BT Wireless, USB (B Type), RS232, microSD (SDHC Class 4)
lead-time 2
list-price 941.58
Manual FC50k_Manual.pdf
manufacturer-part-number FC10
model FC10
overload 200% Full Scale (Display Limit: 110%)
power-supply 12V, 1.2A
units-of-measure N, kgF, lbF, ozF,lb, oz, kg
warranty-covering-parts-and 36 months
