Torbal FB10k Precision Force Gauges

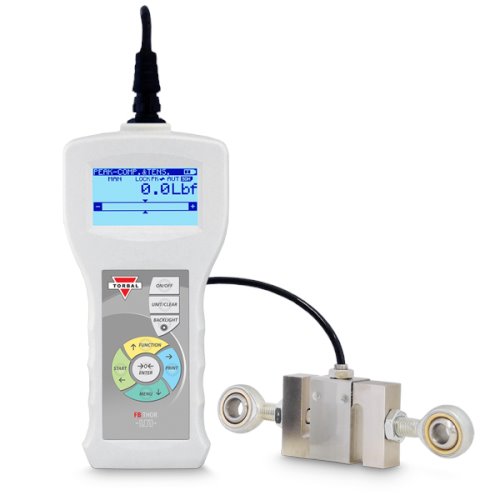

2,000lbf x 0.5lbf (10kN x 2N) Digital high capacity force gauge built for the most demanding push and pull applications up to 2,000 pounds of force with a resolution of 0.5lbf. The force gauge is intuitive and ready for out-of-the-box-use with no complicated configuration or setup. USB, RS232, and microSD for easy PC connectivity and data management. The FBk includes all key force measuring modes such as Peak, Multi Peak, and Standard (Real Time). The unit is supplied with heavy duty swivel bearing joints designed to protect and secure the external loadcells against uneven and rapid movements. The digital gauge is ergonomic and rugged with overload protection up to 200% at full scale.
Specifications
| accuracy | ±0.2% Full Scale |
|---|---|
| battery-operating-time | 32h (LCD Backlight OFF) | 27h (LCD Backlight ON) |
| brand | Torbal |
| capacity-volume | 2,000lbf | 1t | 10kN |
| dimensions | 8.46” x 3.93” x 1.57” | 215mm x 100mm x 40mm (not including load-cell) |
| gtin | 728028234893 |
| interfaces | USB (B Type), RS232, microSD (SDHC Class 4) |
| lead-time | 2 |
| list-price | 1284.37 |
| Manual | FC50k_Manual.pdf |
| manufacturer-part-number | FB10k |
| model | FB10k |
| operating-temperature | 14°F to 104°F | -10 to 40°C | Humidity: Up to 80 % Max |
| overload | 200% Full Scale (Display Limit: 110%) |
| power-supply | 12V, 1.2A |
| resolution | 0.5lbf | 200gf | 2N |
| units-of-measure | N, kgF, lbF, ozF,lb, oz, kg |
| warranty-covering-parts-and | 24 months |
